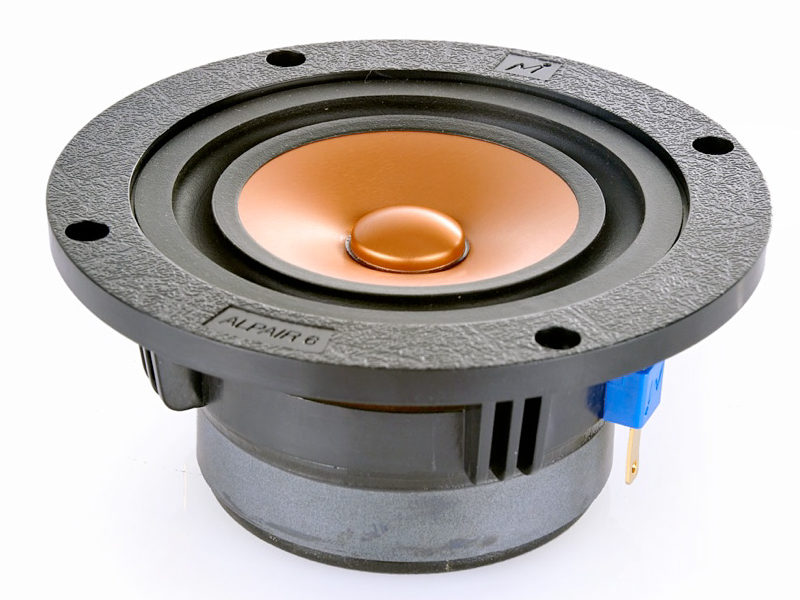

Alpair 6.2
60mm Fullrange drive unit
3.6 ohm single ferrite magnet
- Advanced compact full range drive unit
- 3 1/2in copper colour magnesium-alloy cone
- Operating range to 20KHz –smooth response
- Low-profile multiform cone profile for wide directivity
- Advanced low-distortion motor
- Long-stroke suspension, nomex low-mass spider
- Self-damping polymer basket
Description

The Alpair 6M is well suited to smaller audio applications, particularly desk-top and nearfield uses. The bass-rich warm tone of this driver can act a balance for those installations using compressed or highly processed source music, complements the use of traditional and modern solid state amplification.This new generation 2 model concentrates on refining the musicality of the Alpair 6 heritage.

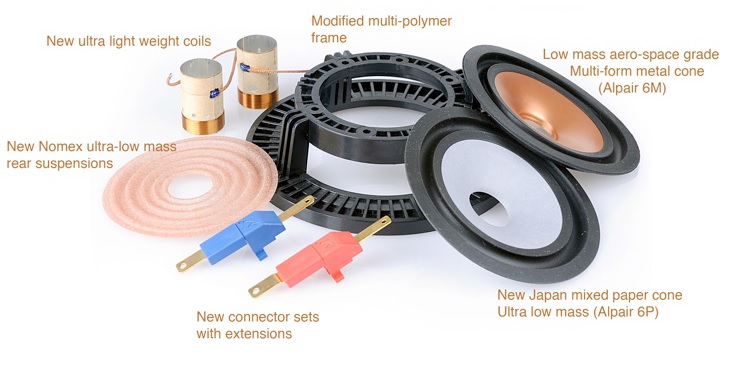

This new generation 2 driver has a new Multi-form cone design. The cone profile has been modified to improve vocal clarity in the lower/lower mid frequency ranges. New advanced Nomex rear suspension and a new low mass copper wound coil is also included in this design. Other additional features include a revision of the polymer mix for the frame making it 10% stiffer than the old model. Finally , new connector sets allow for remote soldering of cables, installation is easy.
| ReVc | 3.6 Ohm |
| F0 | 63 Hz |
| Sd | 36.3 Cm² |
| Vas | 4.8 Ltr |
| CMS | 2.58 m M/N |
| MMD | 2.48 g |
| MMS | 2.57 g |
| BL | 2.81 T·M |
| QMS | 2.76 |
| QES | 0.45 |
| QTS | 0.38 |
| LeVc | 128.7 uH |
| N0 | 0.243 % |
| SPL0 | 85.4 dB |
| X-Max | 4mm one way |
| Power | 15 Watt Nominal 30 Watt Maxx |
| Coil | 188-mm dia Alu-copper |
Sasquatch compact MLTL floorstander:
http://wodendesign.com/downloads/Sasquatch-A62-ML-TL-270118.pdf
Twin-driver vented box standmount:
Additional information
| Weight | 2 kg |
|---|---|
| WEIGHT | 2 KG |
| FS | 63 Hz |
| RE | 3.6 Ohm |
| SD | 36.3 mm/2 |
| VAS | 4.8 Ltr |
| CMS | 2.58 µM/N |
| MMD | 2.48 g |
| MMS | 2.57 g |
| BL | 2.81 Tm |
| QMS | 2.67 |
| QES | .45 |
| QTS | .38 |
| LE | 128.7 µH |
| SPL | 85.4 dB |
| POWER (NOMINAL) | 15 Watts Nominal (30 Max) |
| X MAX | 4 mm (one way) |
