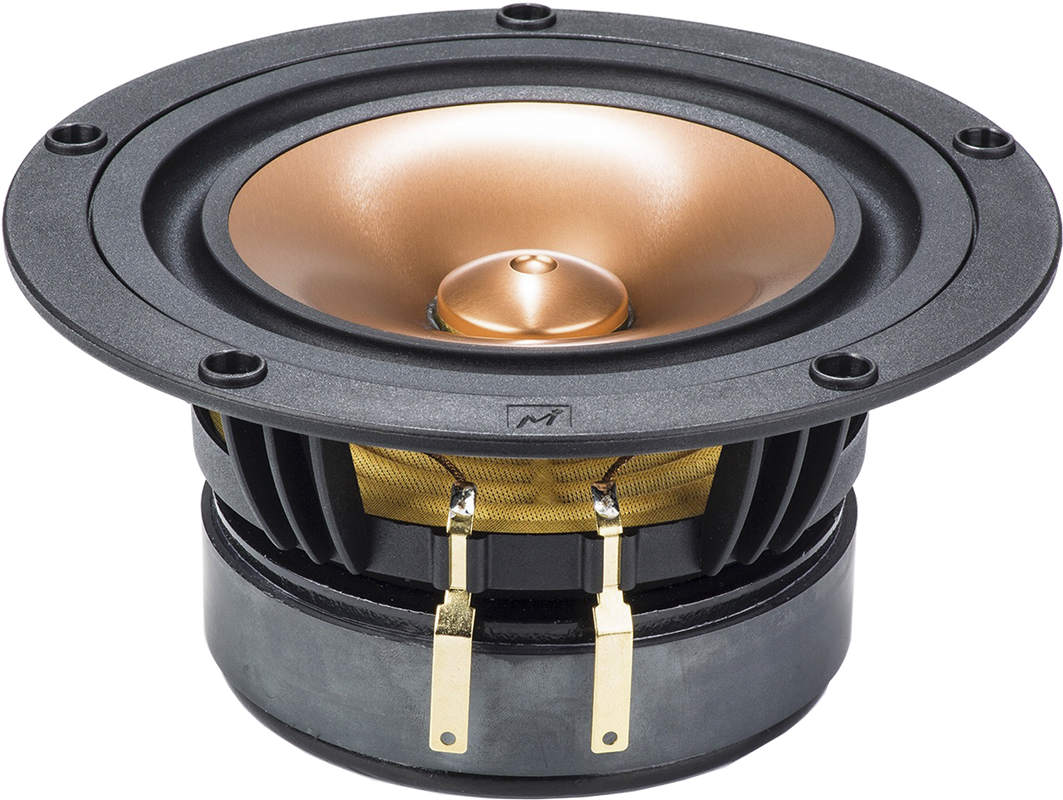

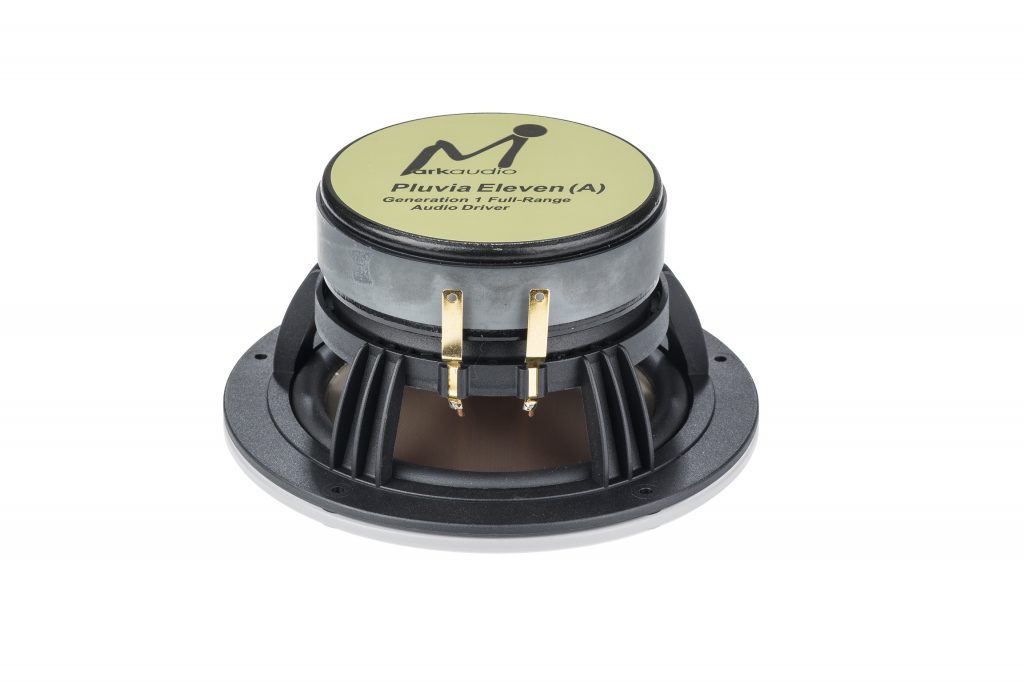

Pluvia 11

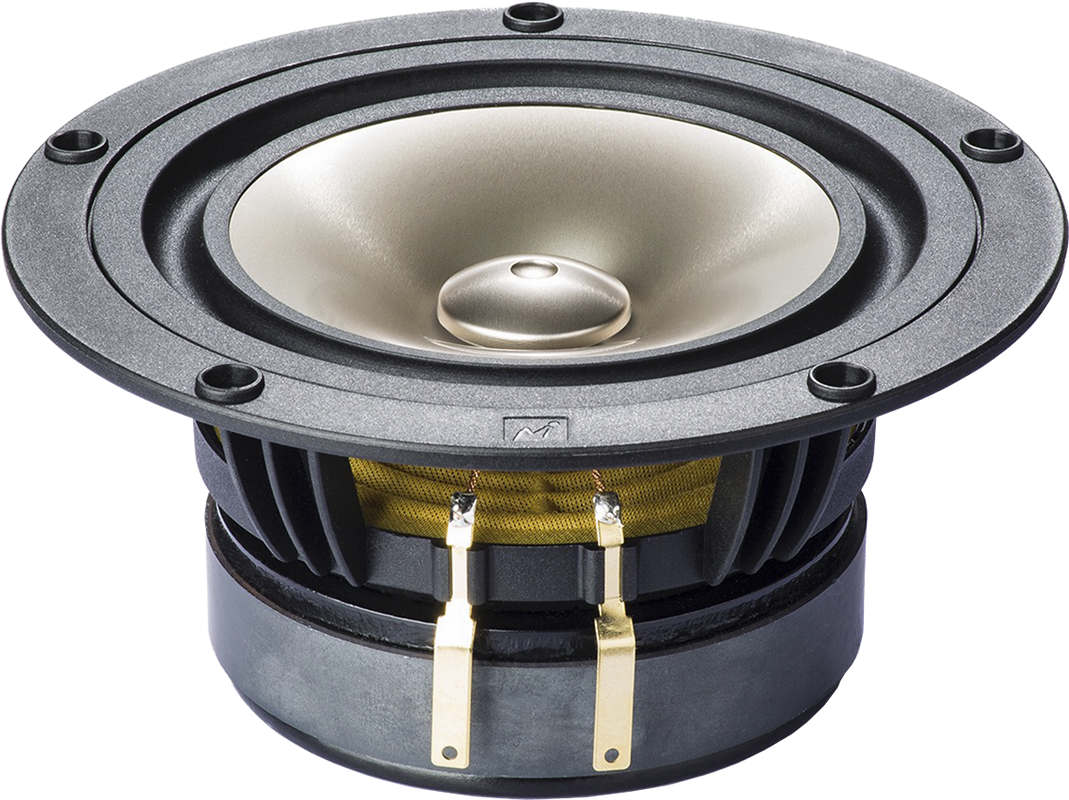

110mm Fullrange drive unit </ br> 6ohm single ferrite magnet

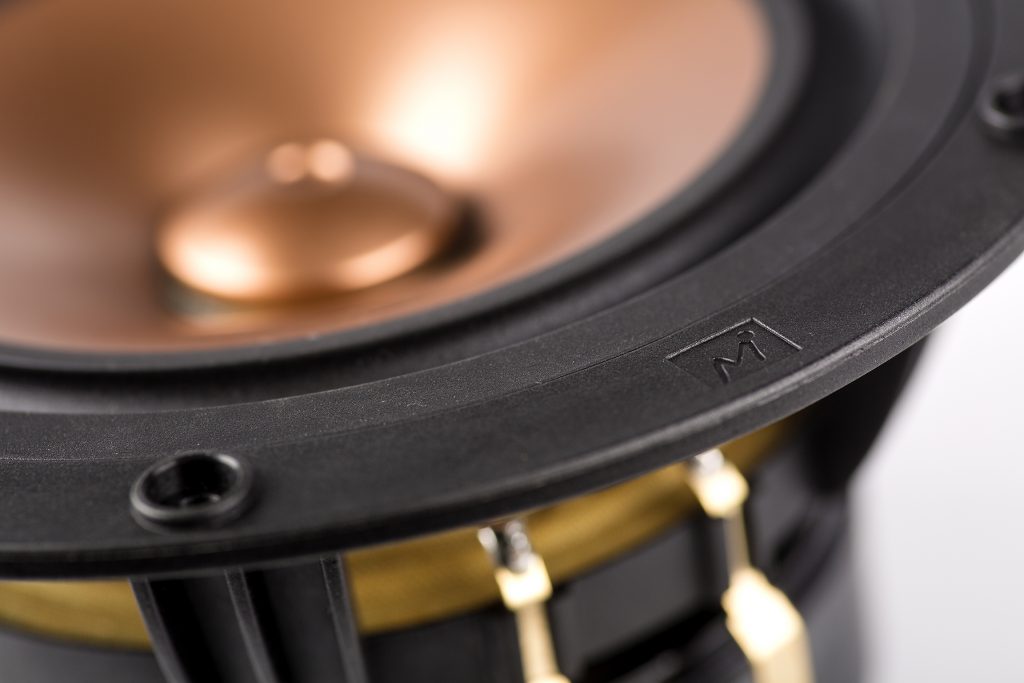

- Unique 5 3/4in soft chrome or antique gold magnesium alloy cone

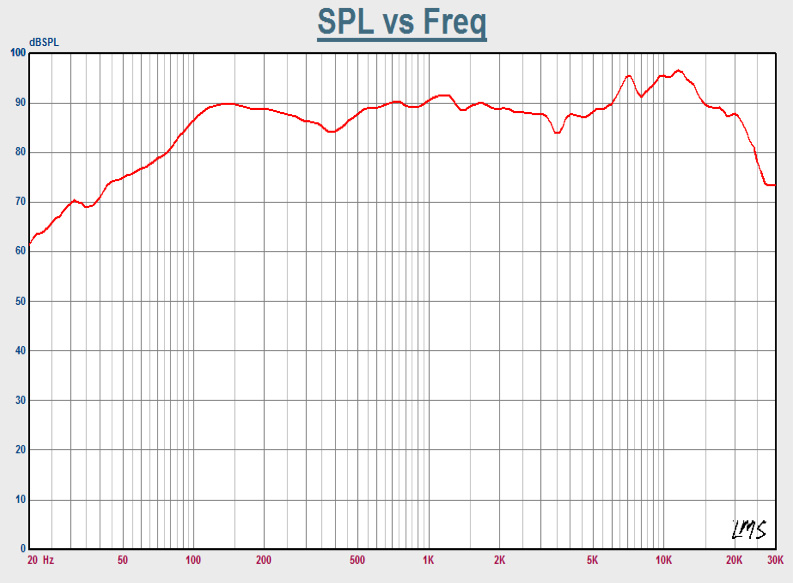

- Wide operating range to 20KHz –gentle high frequency lift for superior off-axis performance
- Shallow multiform cone profile –broad directivity pattern
- Advanced low-distortion motor design
- Long-stroke suspension with arrestor and progressive-rate spider

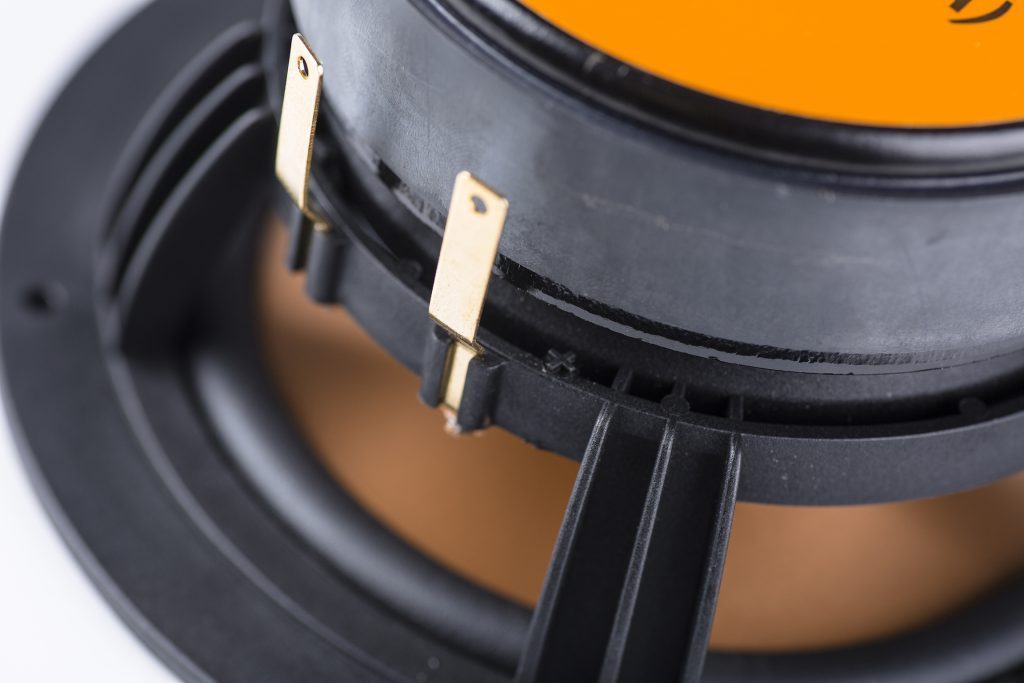

- Low-profile surface-mount reinforced polymer basket
Description

The Full Range audio driver that produces more bass
The Pluvia 11 is a completely new driver design. It is the first “full range” driver that can handle bass loads typically delivered by 5.5 inch to 6.5 inch mid-bass units used in most 2 way systems.

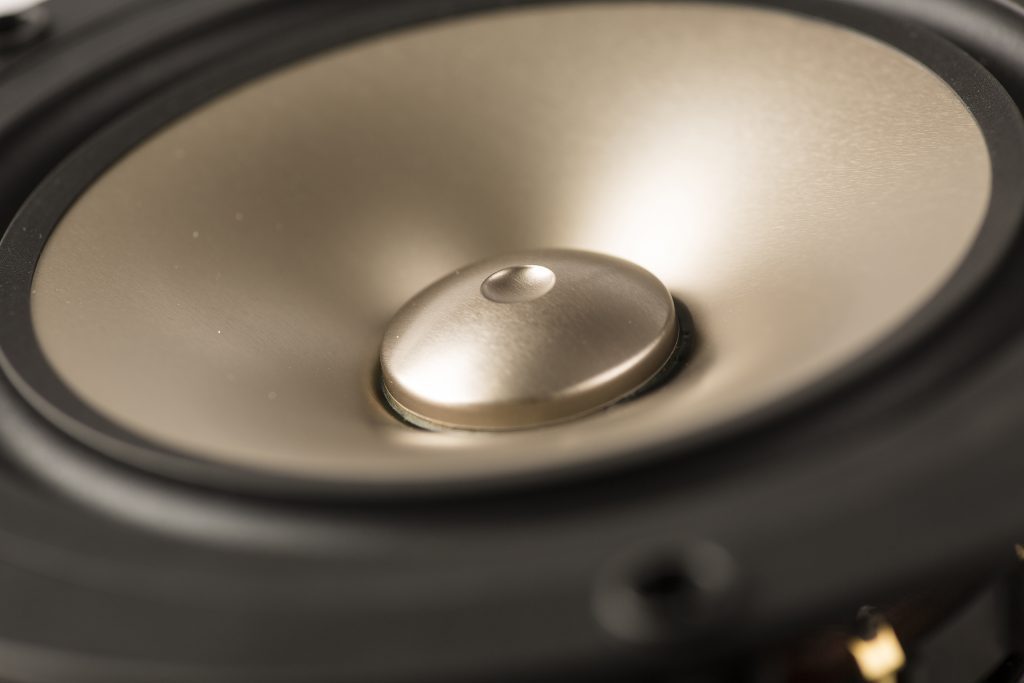

The Pluvia 11 cone is an entirely new design from Mark Fenlon. It uses a new super-strength aerospace grade alloy designed to cope with high bending stress loads. The material thickness is increased be 50% over previous Markaudio designs, yet the profile remains shallow to increase dispersion. Two more processes have been added to the Multiform cone production sequence to increase Pluvia 11’s operational low frequency load capacity.

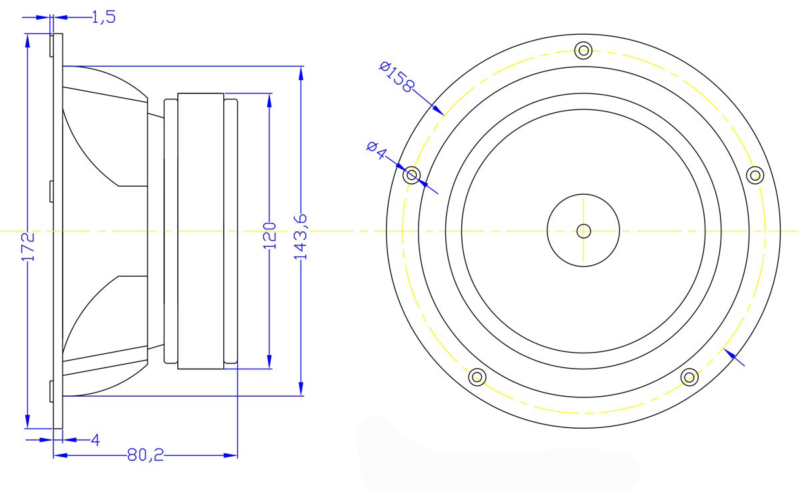

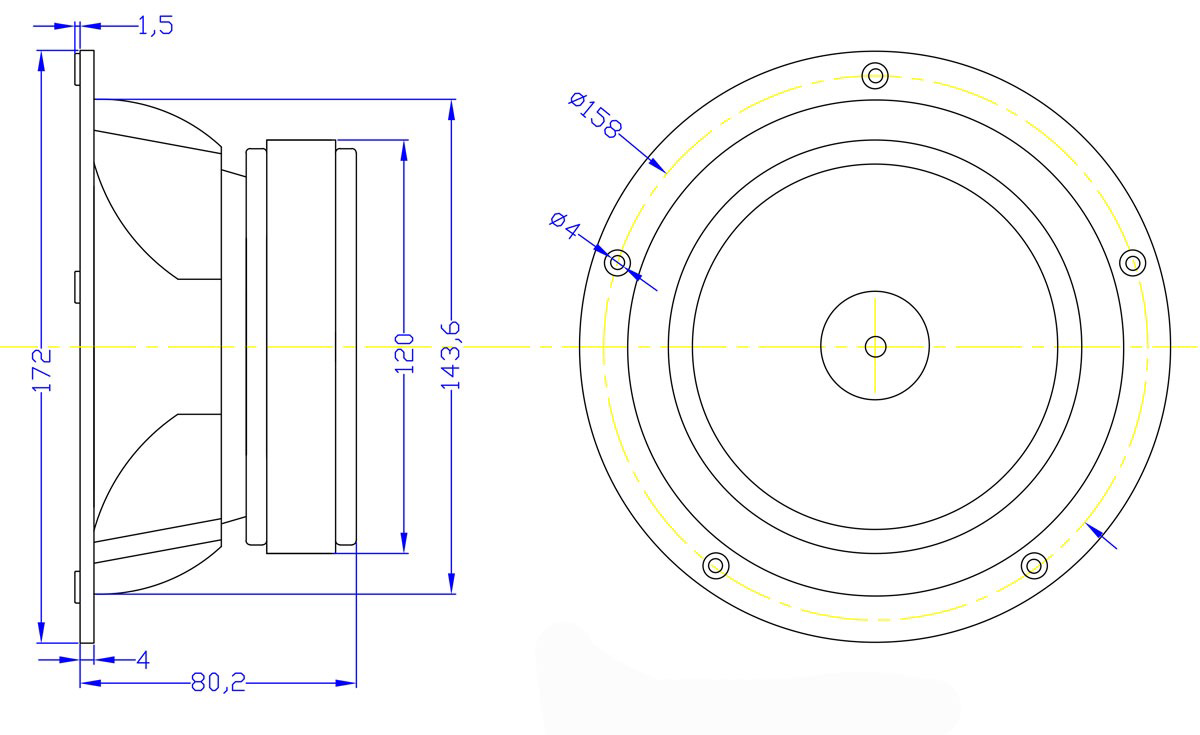

The all-new front suspension has a variable thickness geometry, increasing oscillatory stability by 30% over previous designs. The rear suspension (spider) has an operational surface area 25% larger than the Alpair 10 to cope with load demands of typical mid-bass units. However, the Pluvia 11’s high range has not been sacrificed. It outperforms the smaller Alpair 10 by reaching slightly higher frequencies with an improved spread on the high range lift above 10kHz. Other design advances include the new “easy install” frame. This new-technology one-piece moulding utilises a GF30 glass fibre and resin mix. Pluvia 11’s frame is more rigid than previous designs, with a mounting depth of only 4.5mm, making both recessed and surface-mounting simple. Two new cone colours add visual interest. Along with the Pluvia 7, this new family of drivers will serve custom builders well into the future.
For the first time in the history of traditional full-range driver design, users now have a genuine choice to go full-range without sacrificing bass handling, or use it as a wide-range mid-bass driver that allows simple filtering.
The new Pluvia Eleven is an excellent high-end and multi-purpose driver. Its also suitable for many computer, Home Theatre, TV, and commercial A/V applications.
RE | 5.4 Ohms |
FS | 39.118 |
SD | 109.359 cm² |
VAS | 24.751 ltr |
CMS | 1.457m M/N |
MMD | 10.7 m Kg |
MMS | 11.358 g |
BL | 6.556 TM |
QMS | 1.797 |
QES | .351 |
QTS | .293 |
LE | 68.550 uH |
SPL | 88.131 dB |
X MAX | 7mm 1 way |
POWER (NOMINAL) | 45 Watts |
POWER (MAXIMUM) | 90 Watts |
Frugel-Horn XL:
http://www.frugal-horn.com/FHXL.html
The King of the Swingers standmount vented box series:
http://wodendesign.com/downloads/King-of-Swingers.pdf
The Thin End of the Wedge ML-Voigt:
http://wodendesign.com/downloads/TEotW-ML-V-P11.pdf
Tall Mass Loaded Transmission Line:
http://wodendesign.com/downloads/Tower-MLTL-P11.pdf
Pensil 11:
https://frugal-phile.com/boxlib/pensils/PensilA11-P11.pdf
Compact vented box standmount:
http://wodendesign.com/downloads/Pluvia11-compactMonitor.pdf
Twin-driver vented box standmount:
http://wodendesign.com/downloads/TwinP11-Standmount.pdf
Unusual large quadrupole (4-driver) floorstanding MLTL:
http://wodendesign.com/downloads/Quadrapole-P11-MLTL.pdf

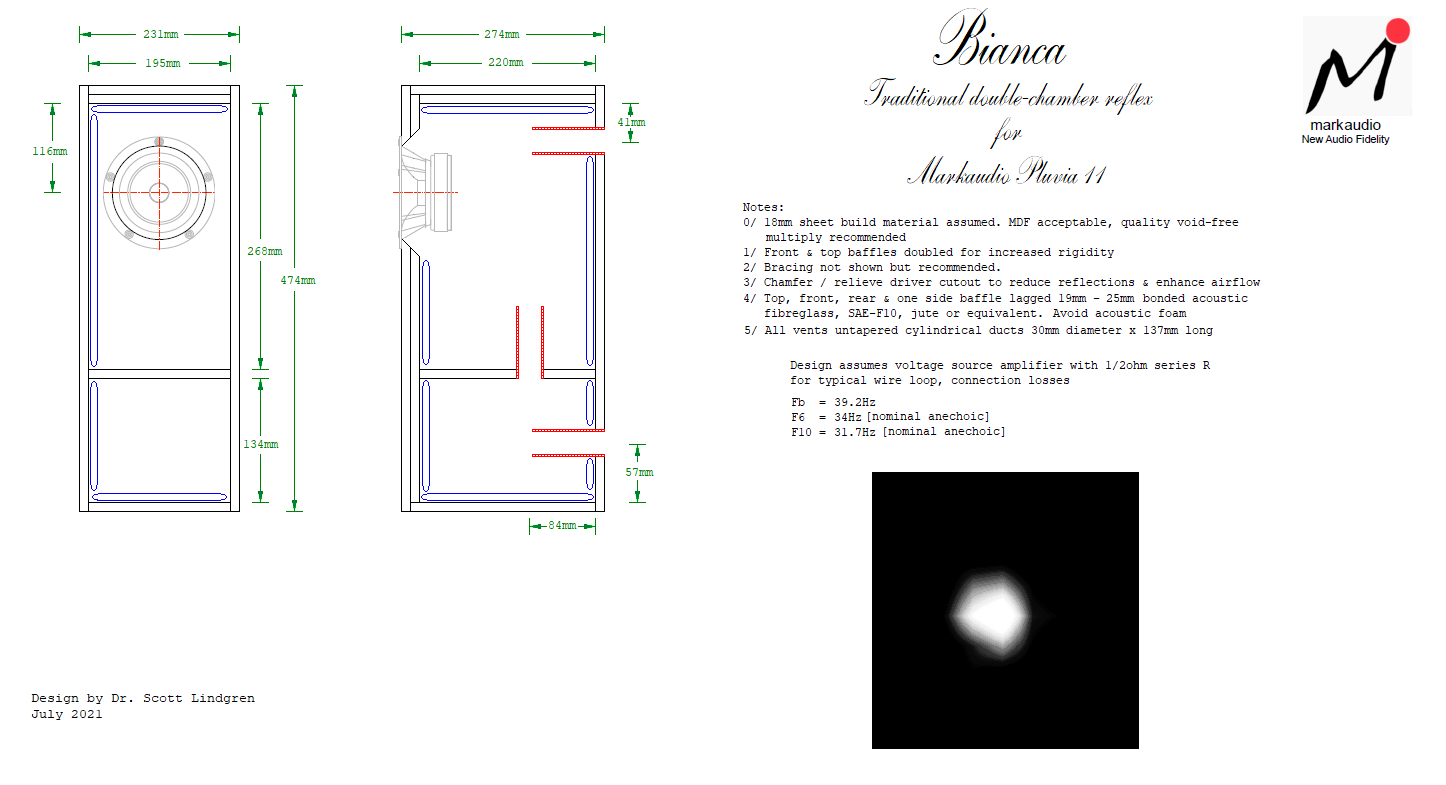

Bianca Pluvia 11 classic DCR box:
https://www.markaudio.com/wp-content/uploads/2021/08/Bianca-Pluvia-11-classic-DCR.png

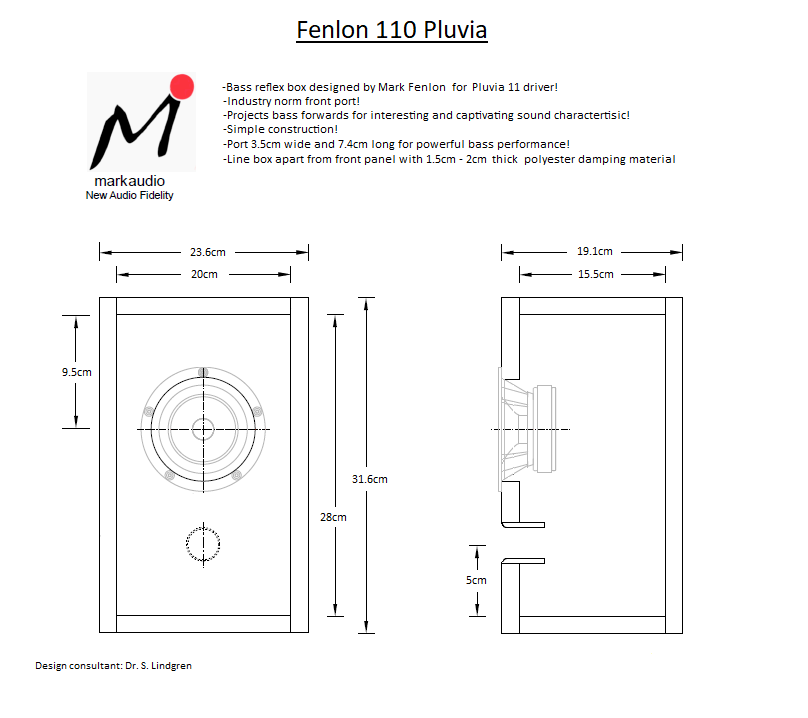

Fenlon 110 Pluvia bass reflex box:
https://www.markaudio.com/wp-content/uploads/2021/08/Fenlon-110-Pluvia.png

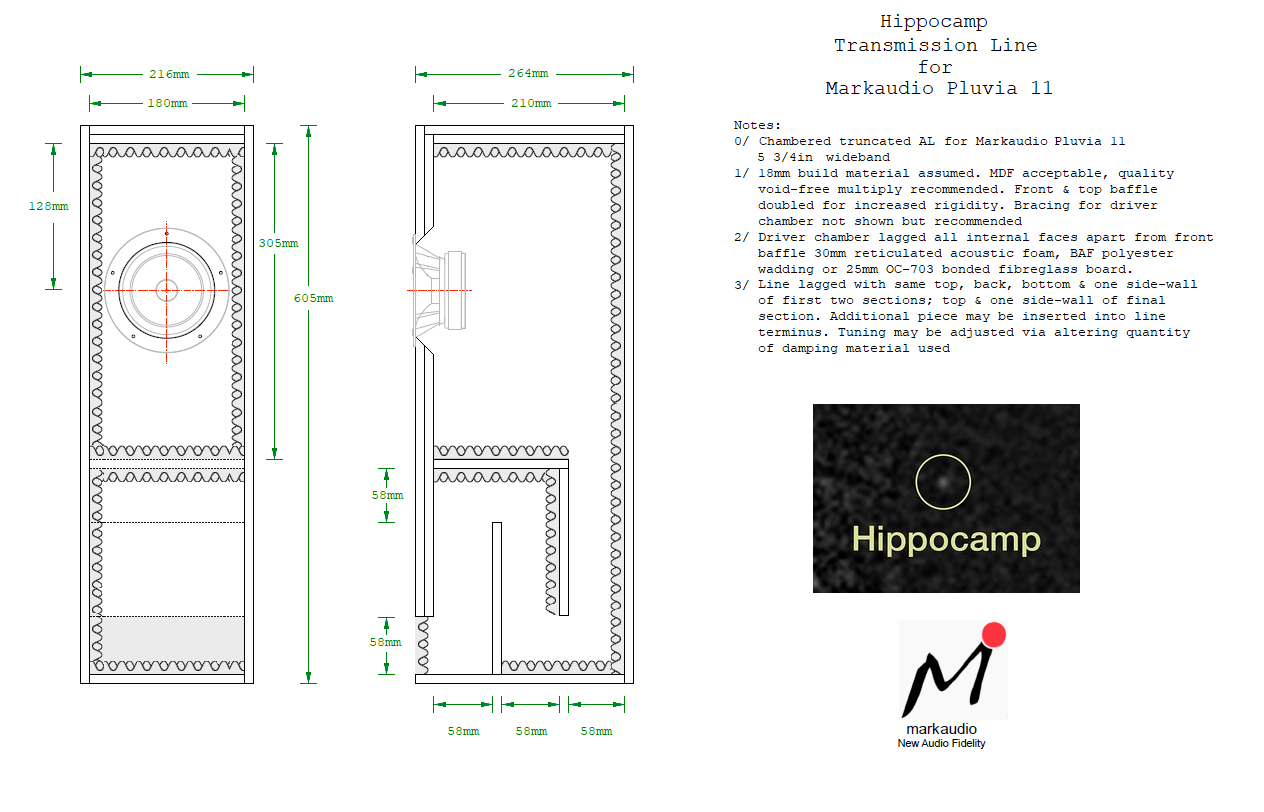

Hippocamp Pluvia 11 RTL:
https://www.markaudio.com/wp-content/uploads/2022/08/Hippocamp-Pluvia-11-RTL.png

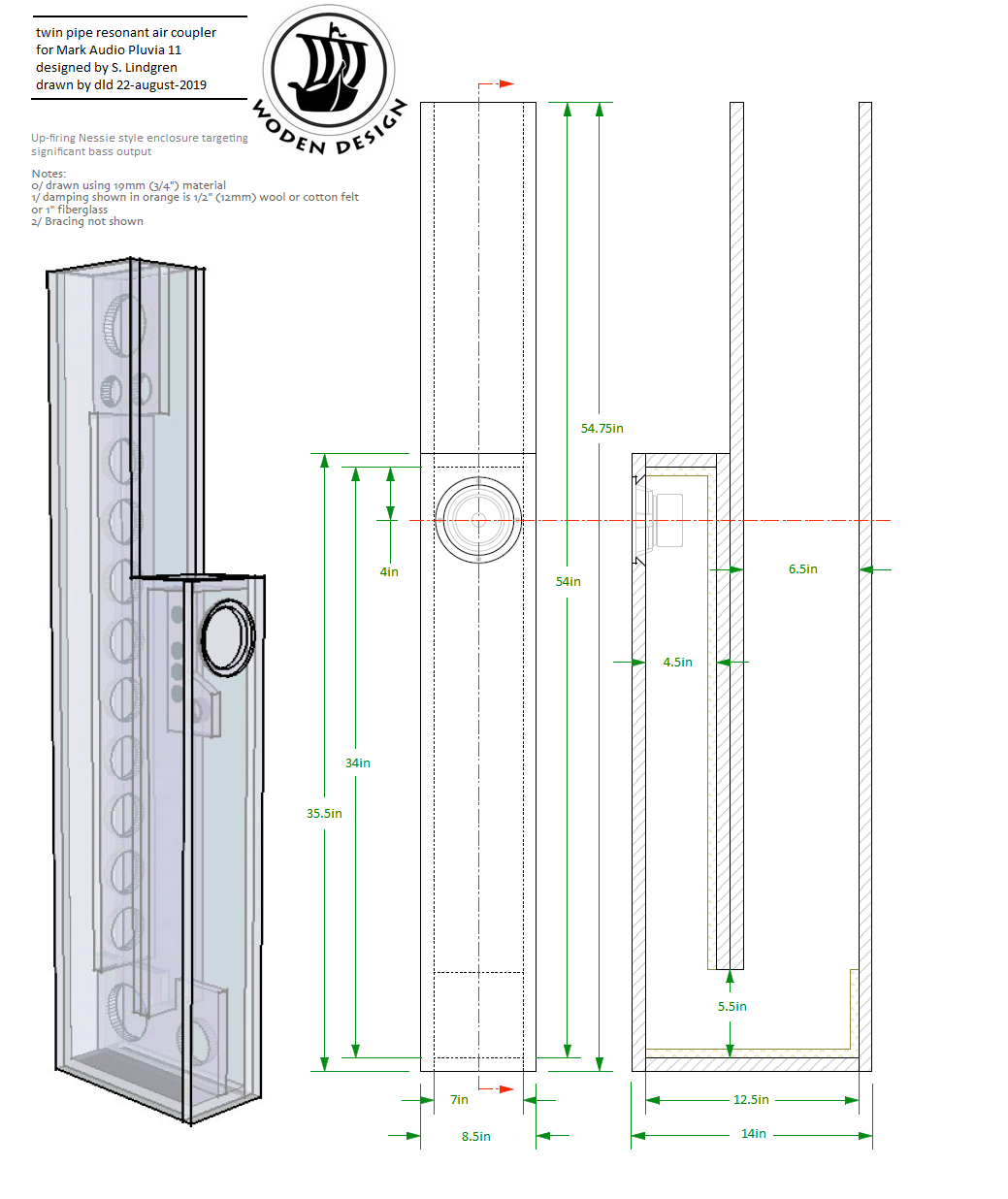

Pluvia 11 Twin Pipe:
https://www.markaudio.com/wp-content/uploads/2022/09/Pluvia-11-twin-pipe.png
Additional information

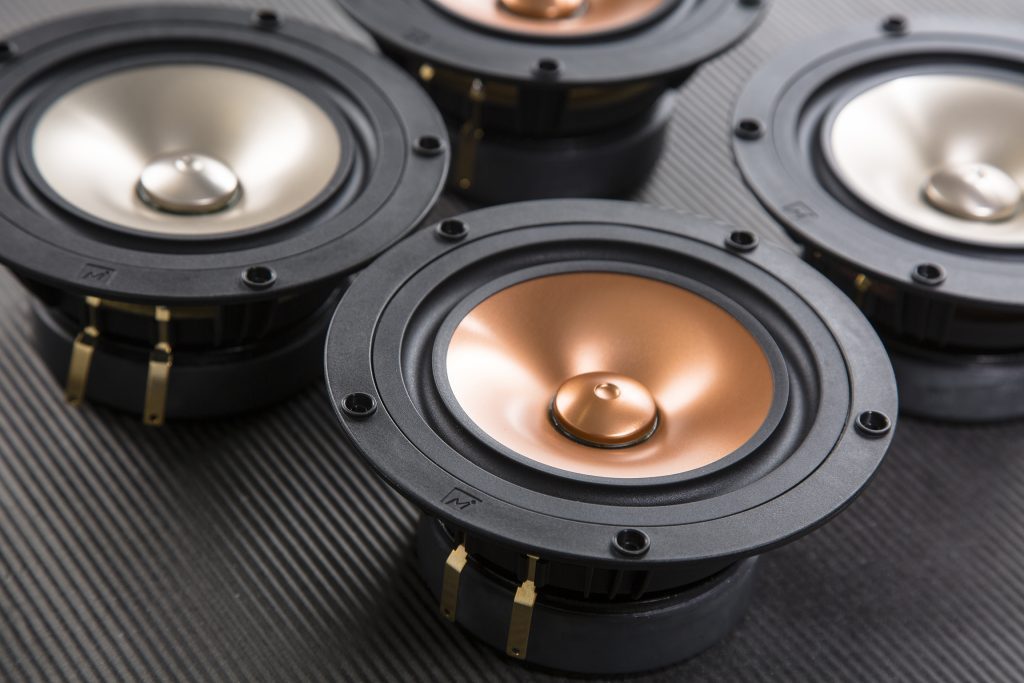

colour | Soft Chrome, Vintage Gold |
---|---|
RE | 5.4 Ohms |
FS | 39.118 |
SD | 109.359 cm² |
VAS | 24.751 ltr |
CMS | 1.457m M/N |
MMD | 10.7 m Kg |
MMS | 11.358 g |
BL | 6.556 TM |
QMS | 1.797 |
QES | .351 |
QTS | .293 |
LE | 68.550 uH |
SPL | 88.131 dB |
X MAX | 7mm 1 way |
POWER (NOMINAL) | 45 Watts |
POWER (MAXIMUM) | 90 Watts |
