Pluvia 7

(1 customer review)

These drivers are no longer produced, this page is for reference only.

Description

The Pluvia Seven driver is a new type of small driver from MarkAudio. While its mechanically similar to the CHR-70 series drivers, its major design features are more advanced.

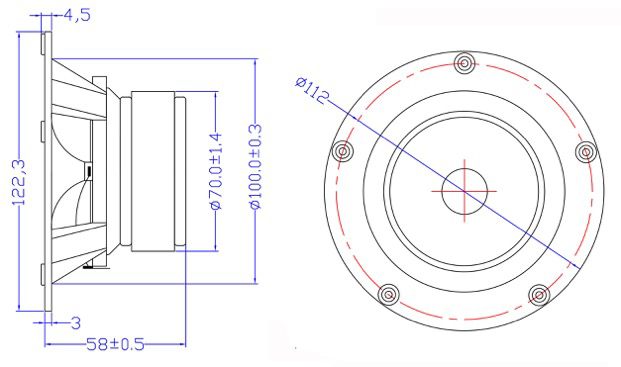

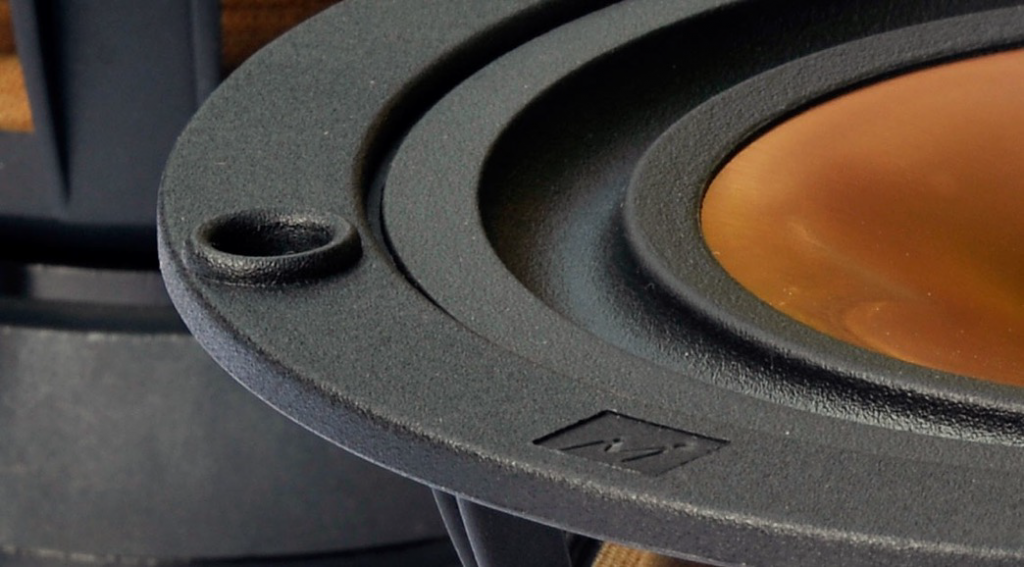

The main feature of this Pluvia is its new low-mass thin profile glass-fibre injected chassis (frame). This chassis design has taken 2 years of research and development to produce a highly damped strong frame that makes installation easy. Pluvia Seven can be either surface mounted or recessed into a loudspeaker box. The chassis mounting depth is only 3.5mm making it easy fit for either type of installation. The chassis appearance is high quality, with a professional industry finish that makes the Pluvia Seven look expensive while it remains affordable.

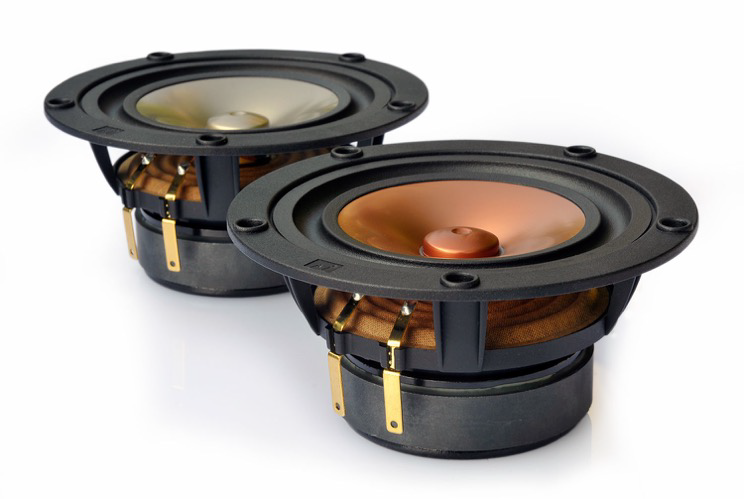

The Pluvia Seven features a new shape cap and revised suspensions giving it a wide range with controlled mid response to help reduce “shout”, typical of many small wide band drivers. Pluvia’s cones use the latest profiles from designer Mark Fenlon, featuring 2 new colours, Vintage Gold and Soft Chrome. Vocals on this Pluvia are clear and natural. Baffle Step Compensation (BSC) is enhanced on the new suspension layout, making this driver more effective in combating box losses in the low range. Other new features include longer gold plated connectors for easier soldering or using clamp type connectors.

The new Pluvia Seven is an excellent high end and multi-purpose driver. Its also suitable for many computer, Home Theatre, TV, and commercial A/V applications.


Revc 7.200 Ohm
Fo 67.863 Hz
Sd 50.270 cm²
Vas 5.543 Ltr
Cms 1.545m M/N
Mmd 3.356m Kg
Mms 3.561 g
BL 3.968 TM
Qms 2.391
Qes 0.695
Qts 0.538
Levc 35.057u H
No 0.241 %
SPLo 85.843 dB
Pwr 22 watts Nom
X max 4mm 1 way




Additional information

Weight 2 kg
colour

Soft Chrome, Vintage Gold

FS

67.863 Hz

LE

35.057u H

MMD

3.356m Kg

MMS

3.561 g

BL

3.968 TM

QES

0.695

QMS

2.391

QTS

0.538

RE

7.200 Ohm

SD

50.270 cm²

SPL

85.843 dB

VAS

5.543 Ltr

X MAX

4mm 1 way

POWER (NOMINAL)

22 Watts

1 review for Pluvia 7

  1. sbacmh

    Great driver, I built a small sealed box and used them on my desk
