110mm Fullrange drive unit. Single ferrite magnet.

8ohm Nominal impedance

Low-profile, micro-arc oxodsied multiform cone for broad directivity pattern

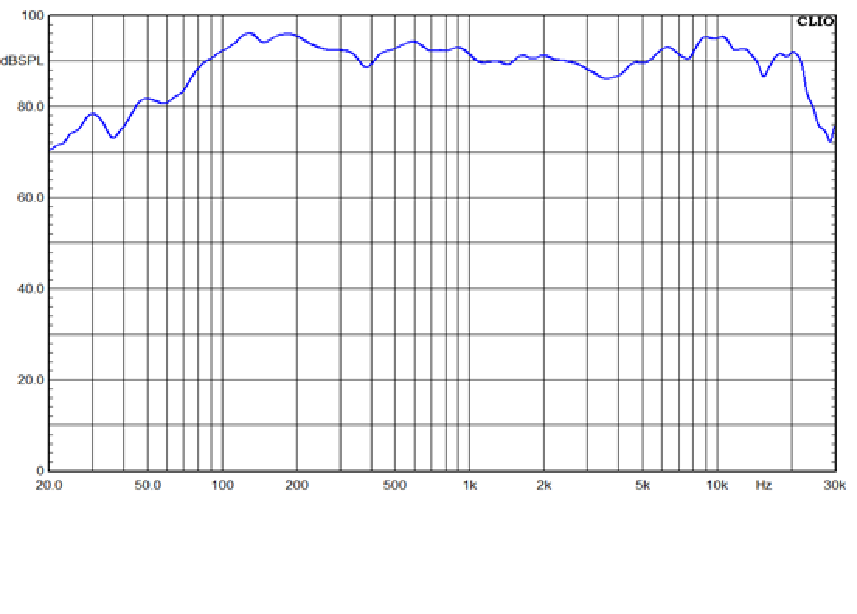

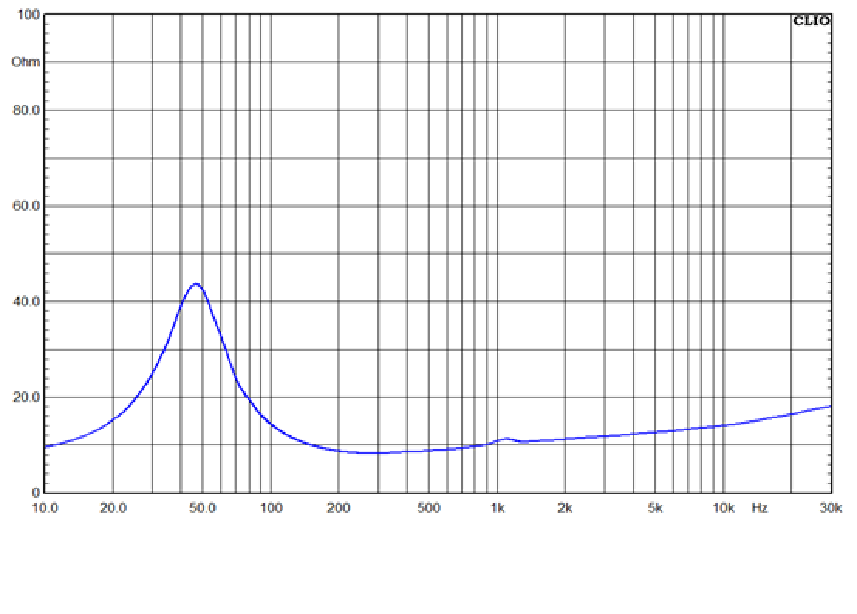

All MAOP drive units are custom measured in our anechoic chamber: data here published as a sample for general guidance.

The Magnetic Arc Oxidisation Process is done at extremely high temperature in a flux bath that is prone to differential temperatures (hot/cold spots) which can warp the cones. The process is 10 times the cost of normal cone production, at least half are scrapped as it does render cones unusable if they are warped even slightly. The MAOP process involves a chemical conversion where the cone material is converted into its crystalline oxide. The crystal grows both inward into the substrate and outward. As such the new coating is not a deposited coating it is part of the original structure which gives excellent adhesion. The large crystal structure provides excellent stiffness and resistance to damage. The crystalline structure also encapsulates microscopic voids. It is supposed that it is the blend of microscopic voids and stiff structure that lend the cone the audio properties of both the metal cone and the paper cone, accuracy and a listen all day quality.

After construction, each driver is individually measured in the anechoic chamber at the Markaudio factory and pair matched based on that data to within, 0.5% tolerance.  Each pair is supplied with individual electrical and acoustic measurements.

FS44.3146 Hz
VAS18.4481 L
RE6.8 Ω
BxI8.0545 Txm
SD0.0111 m ²
CMS1.0680 mm/N
MMS12.0624 g
RMS1.6767 WM
CAS1.32E-7 m5/N
MAS97.51 kg/m4
RAS13555 WA
CMES185.9346 mF
LCES69.2877 mH
RES38.6909 W
RAT90680 WA
RMT11.2171 WM
MMD11.3985 g
ZMIN8.5707 W
ZMAX45.4909 W
ZAVG16.2322 W
L1kHz0.3671 mH
L10kHz0.1202 mH

Additional information

Weight 5 kg
Dimensions 30 × 30 × 30 cm
