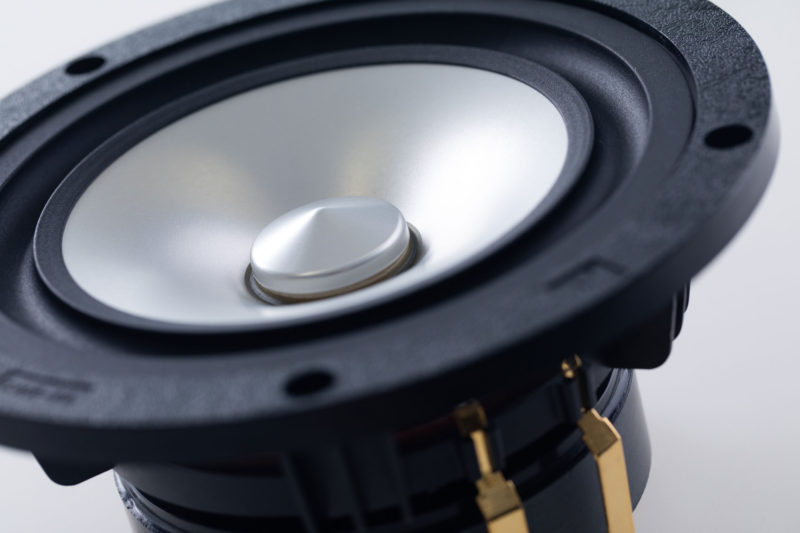

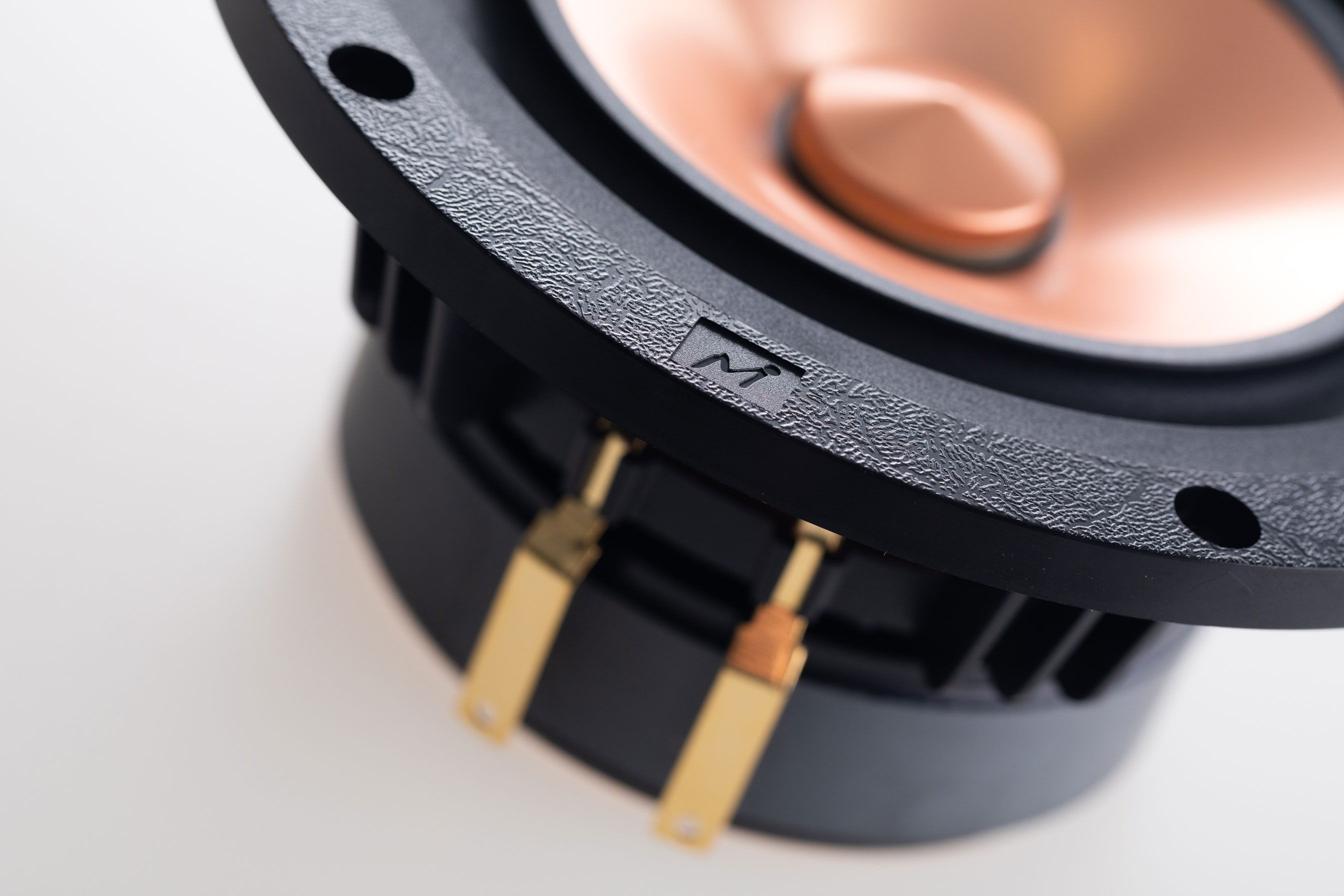

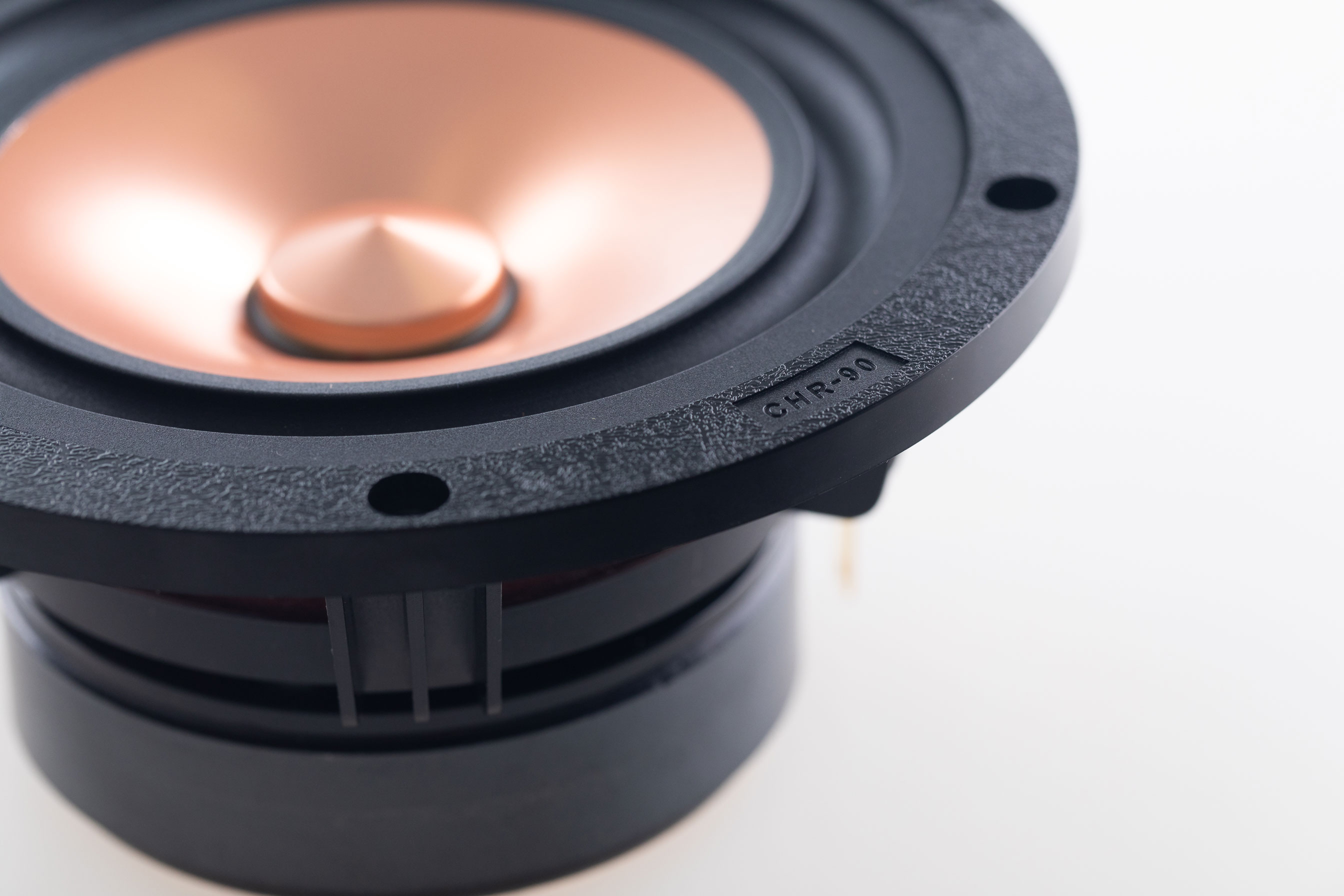

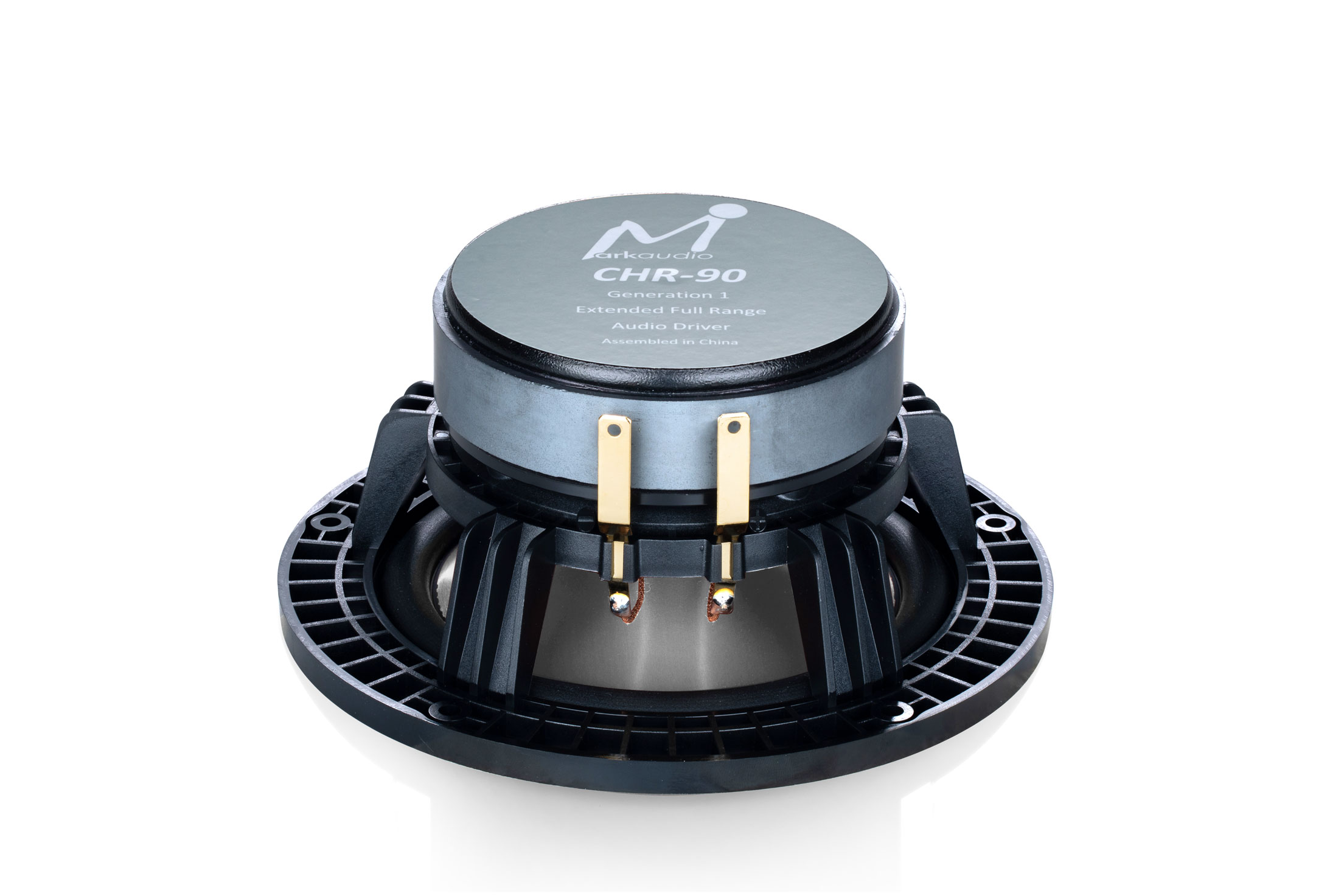

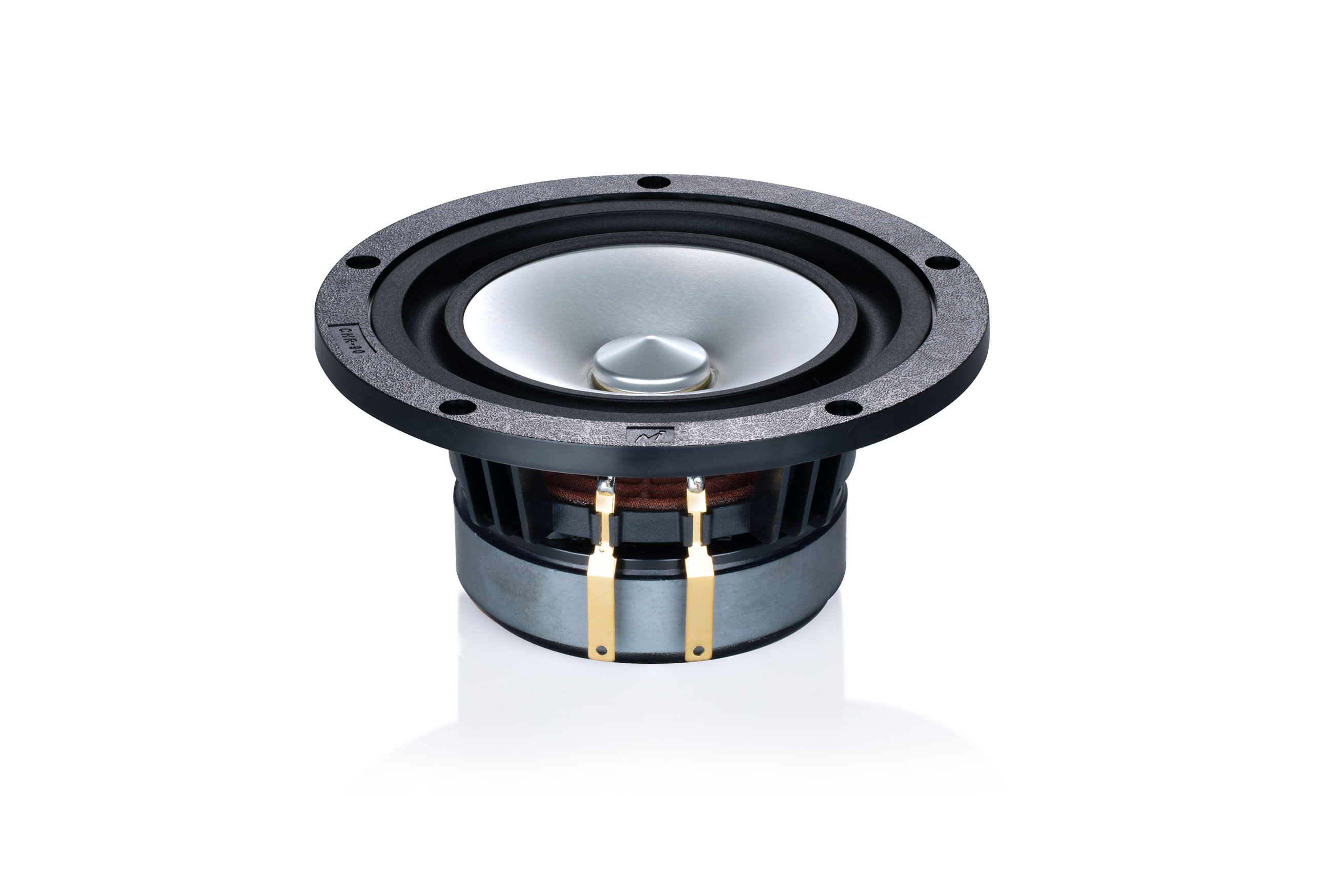

CHR-90

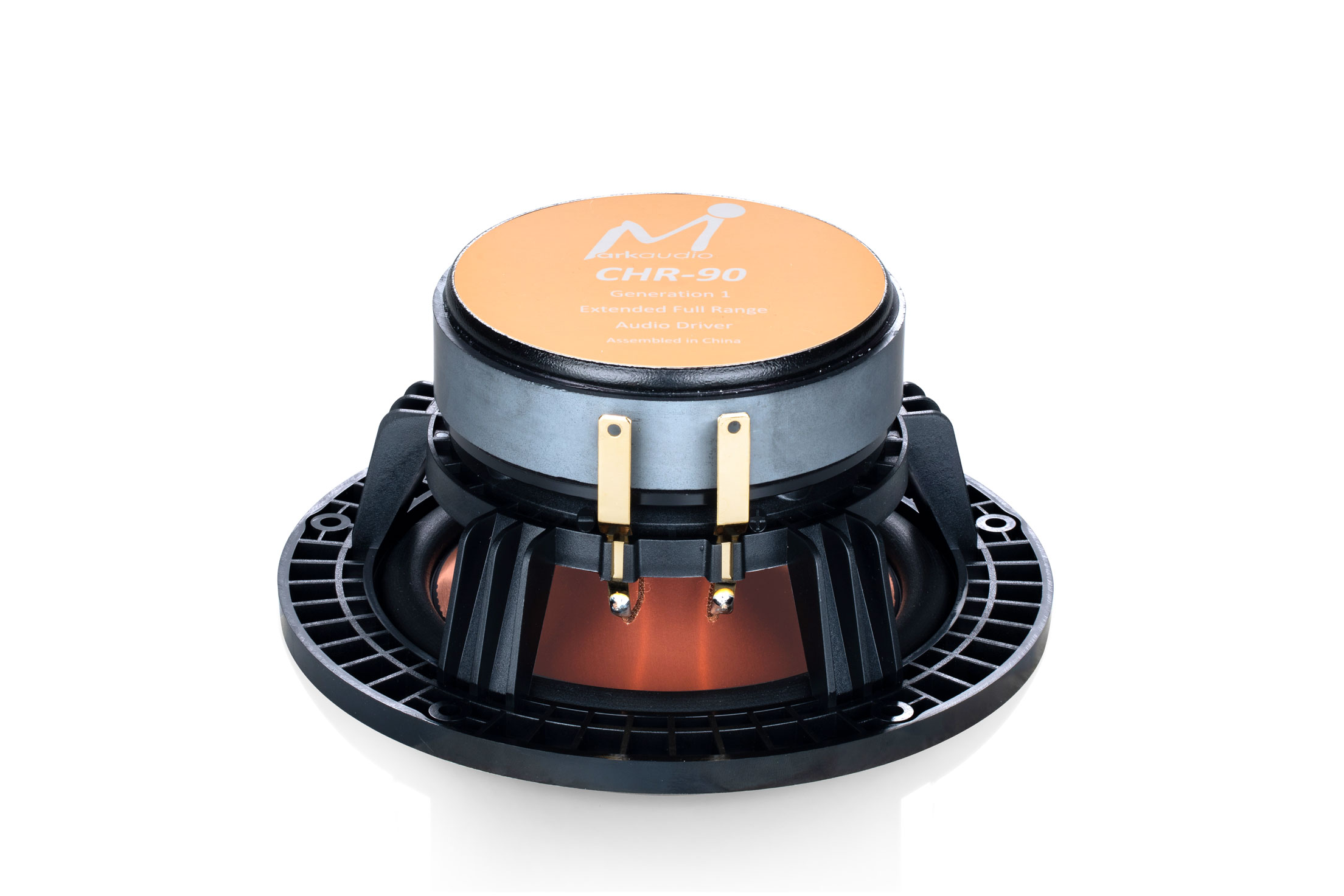

90mm Fullrange drive unit </ br> 8ohm single ferrite magnet</ p>

  • full range drive unit

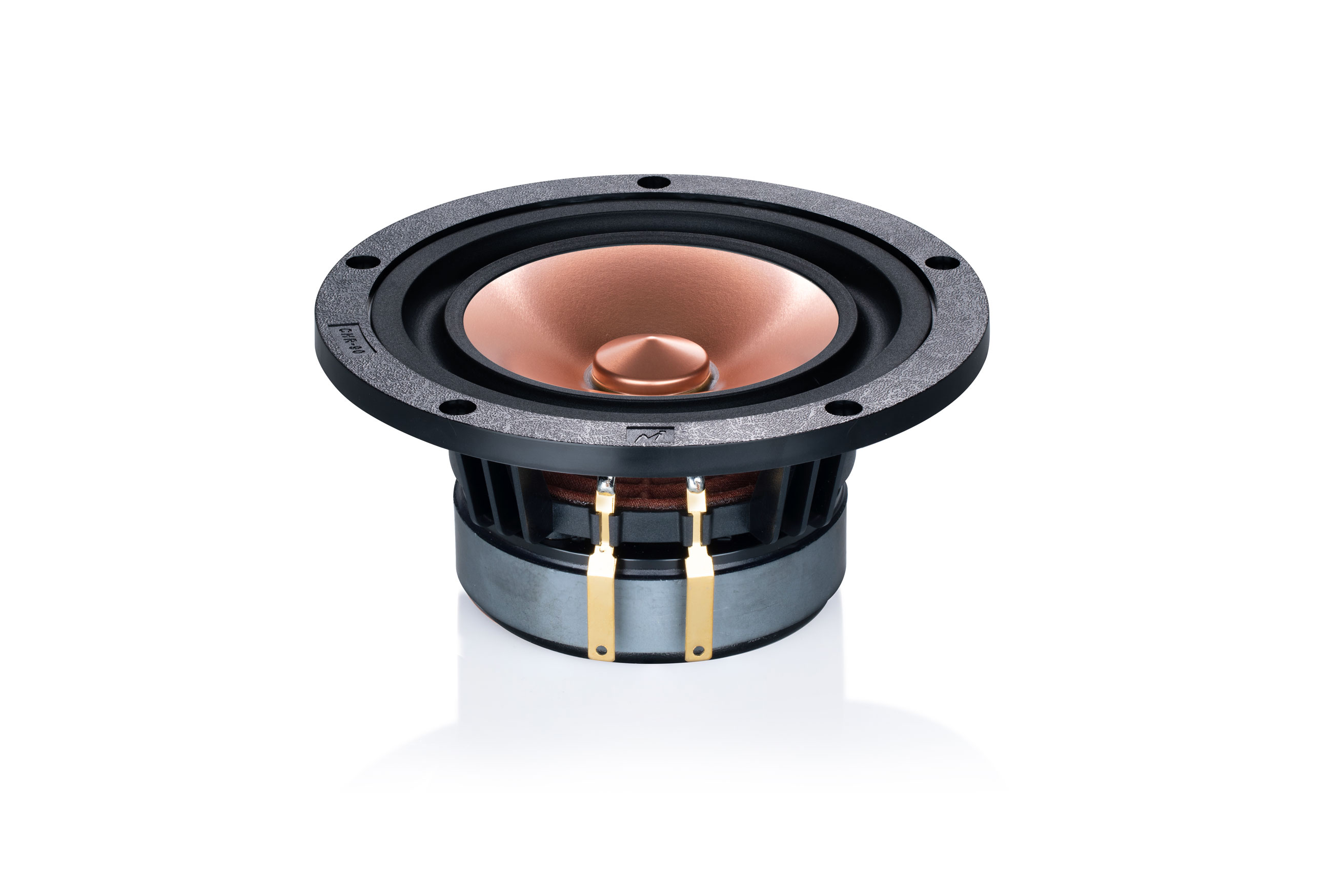

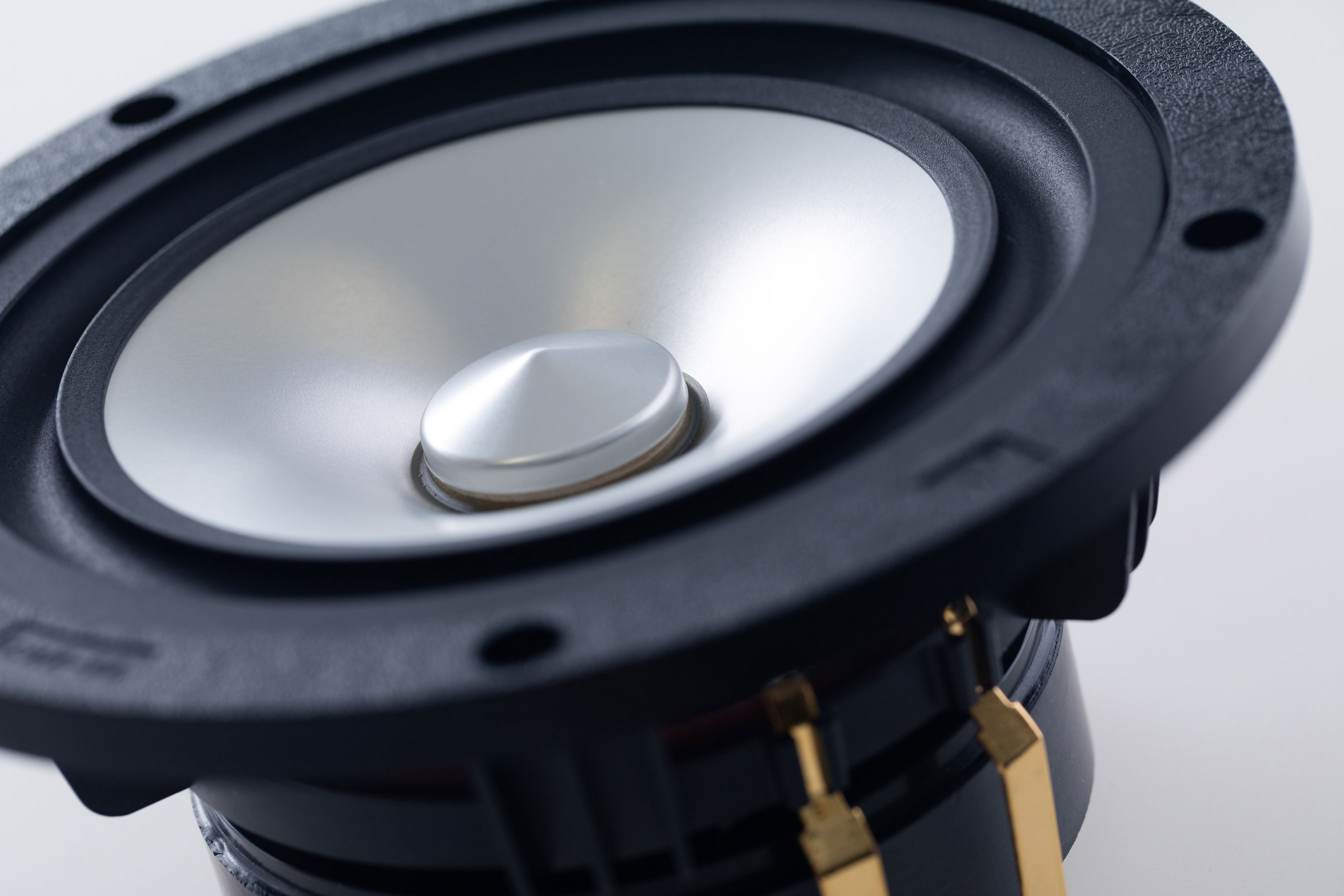

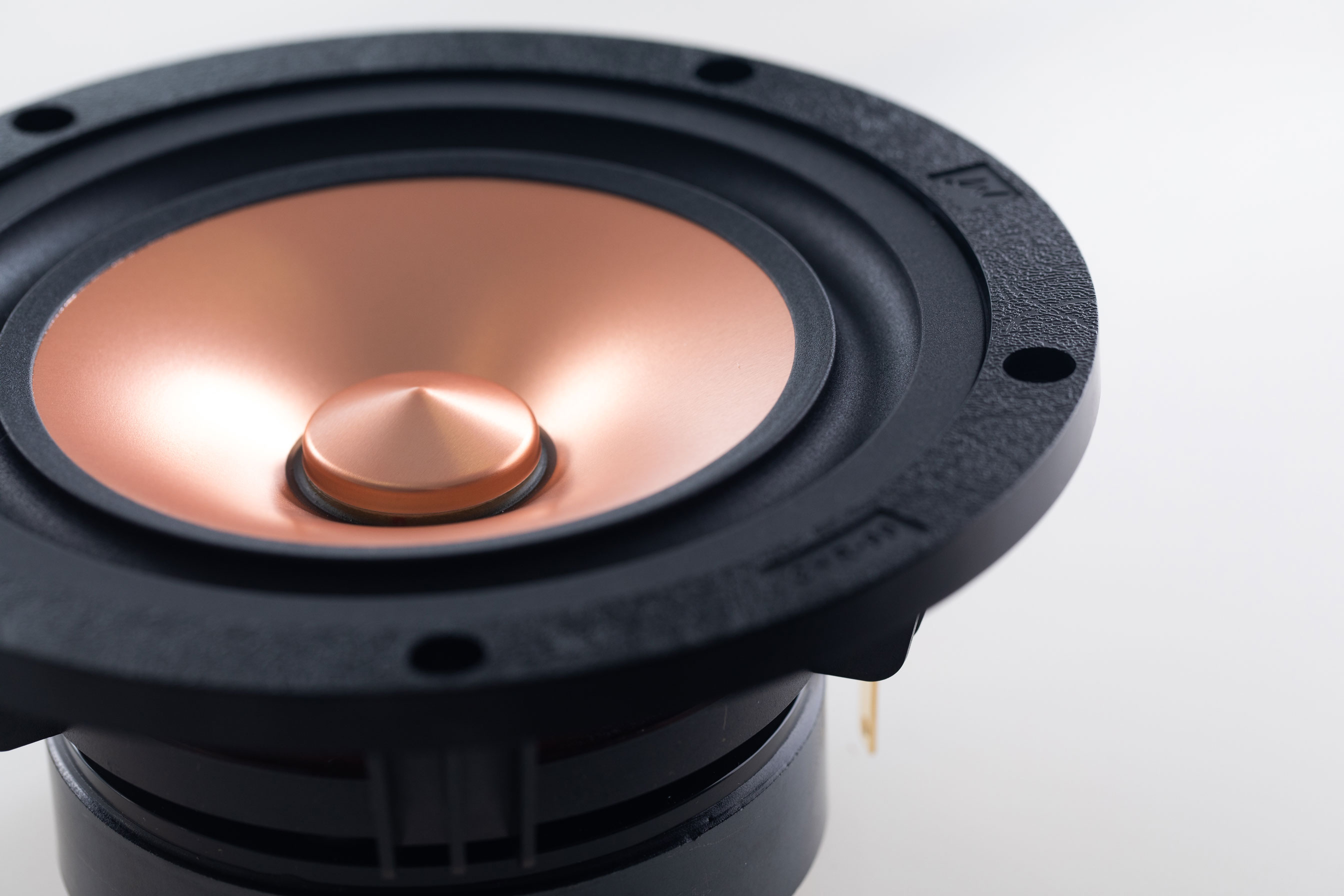

  • Metal cone in 2 colours
  • Wide perating range to 20KHz –very linear response

Description

CHR-90



The CHR-90 is an affordable all-new Full-Range 3.5-inch multi-purpose driver unit suitable for use in variety of medium size loudspeakers applications, or as part of a multiway system.

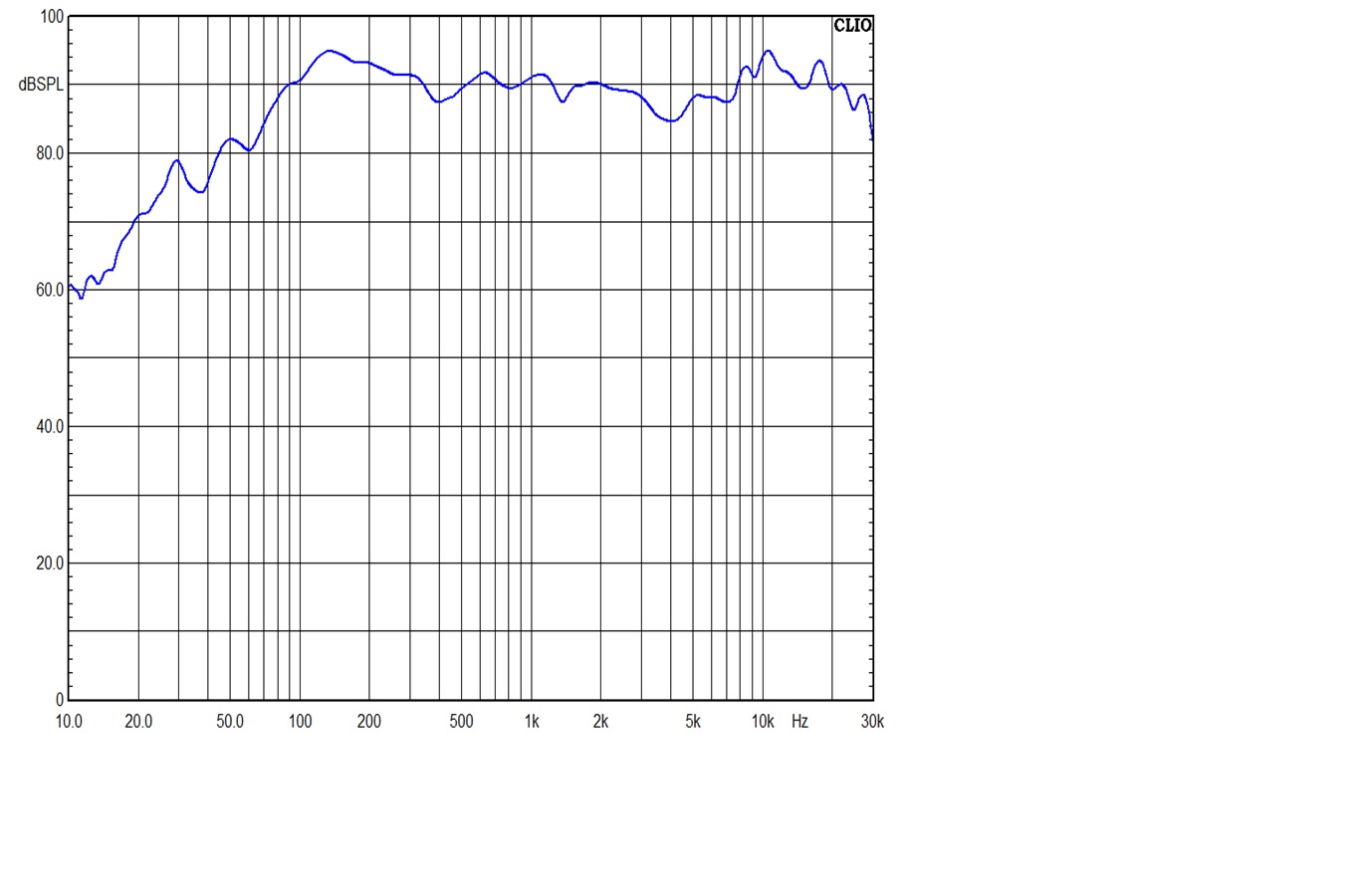

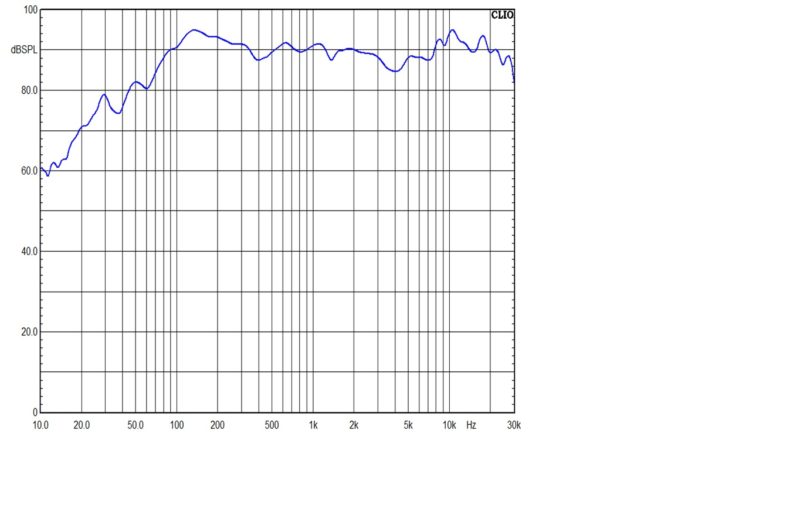

The central mid-range is benign, near flat response, from 1KHz to 6KHz giving end-users and custom builders the potential to use the CHR90 as a mid-field driver in larger multiway applications, useful for balancing out larger radiated surface outputs from big bass units.

The CHR90 also has potential for use in 2 way applications as a bass-mid driver. Most Markaudio drivers have a purpose designed frequency lift in the lower ranges (typically 100Hz to 500Hz) to compensate for baffle step losses.

The CHR90 is useful to these applications where end-users and loudspeaker makers need a wider choice on frequency cross-over point selection.

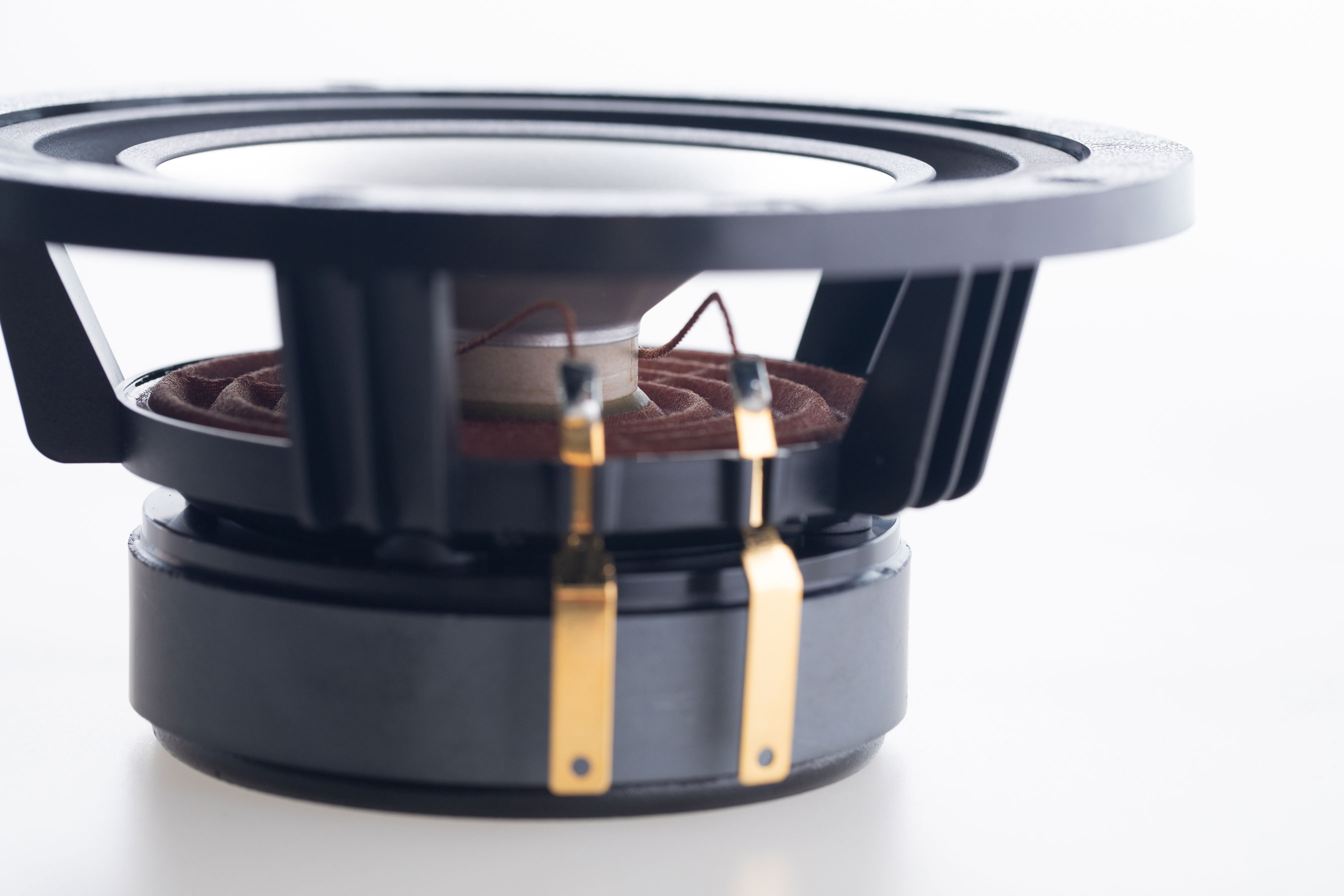

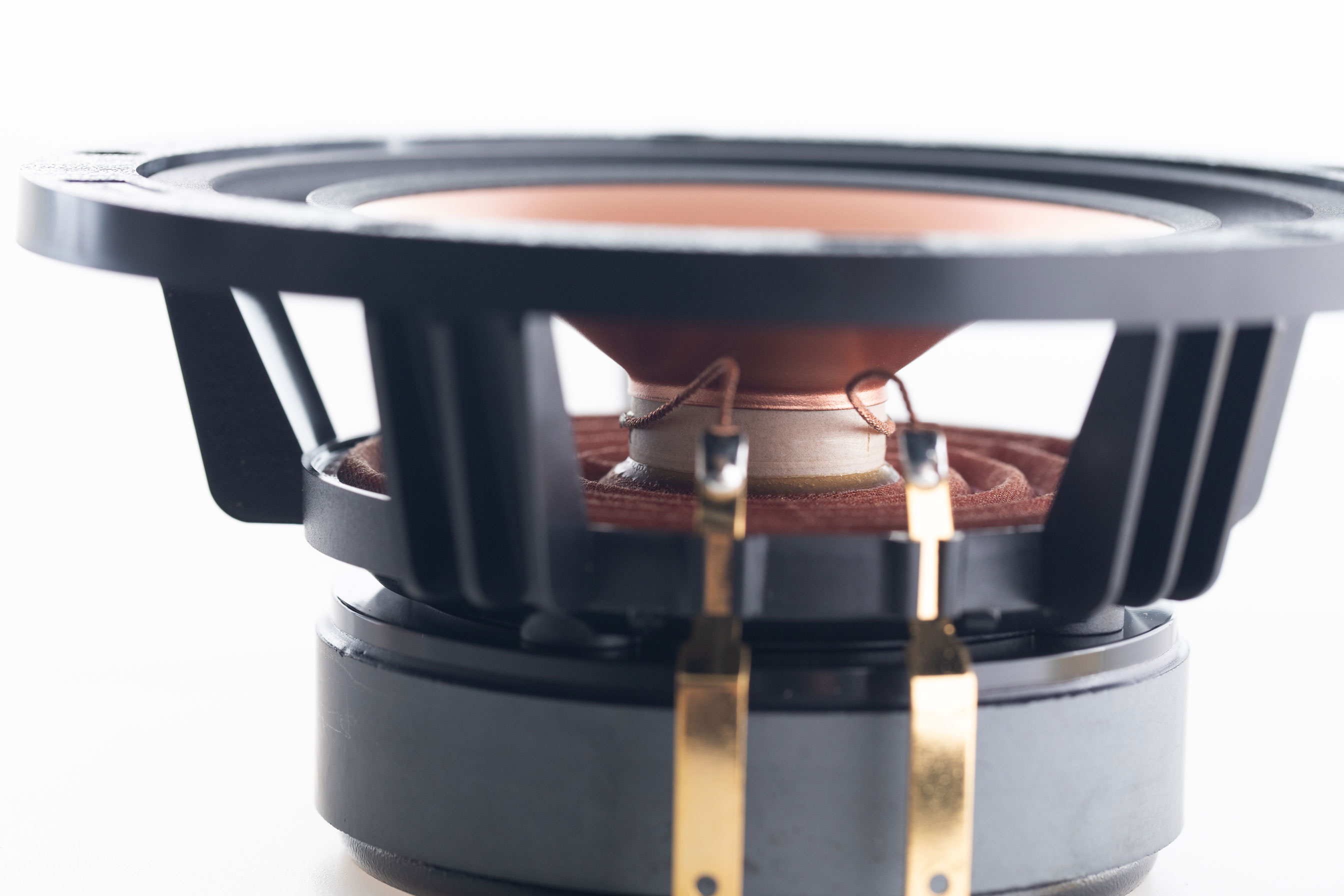

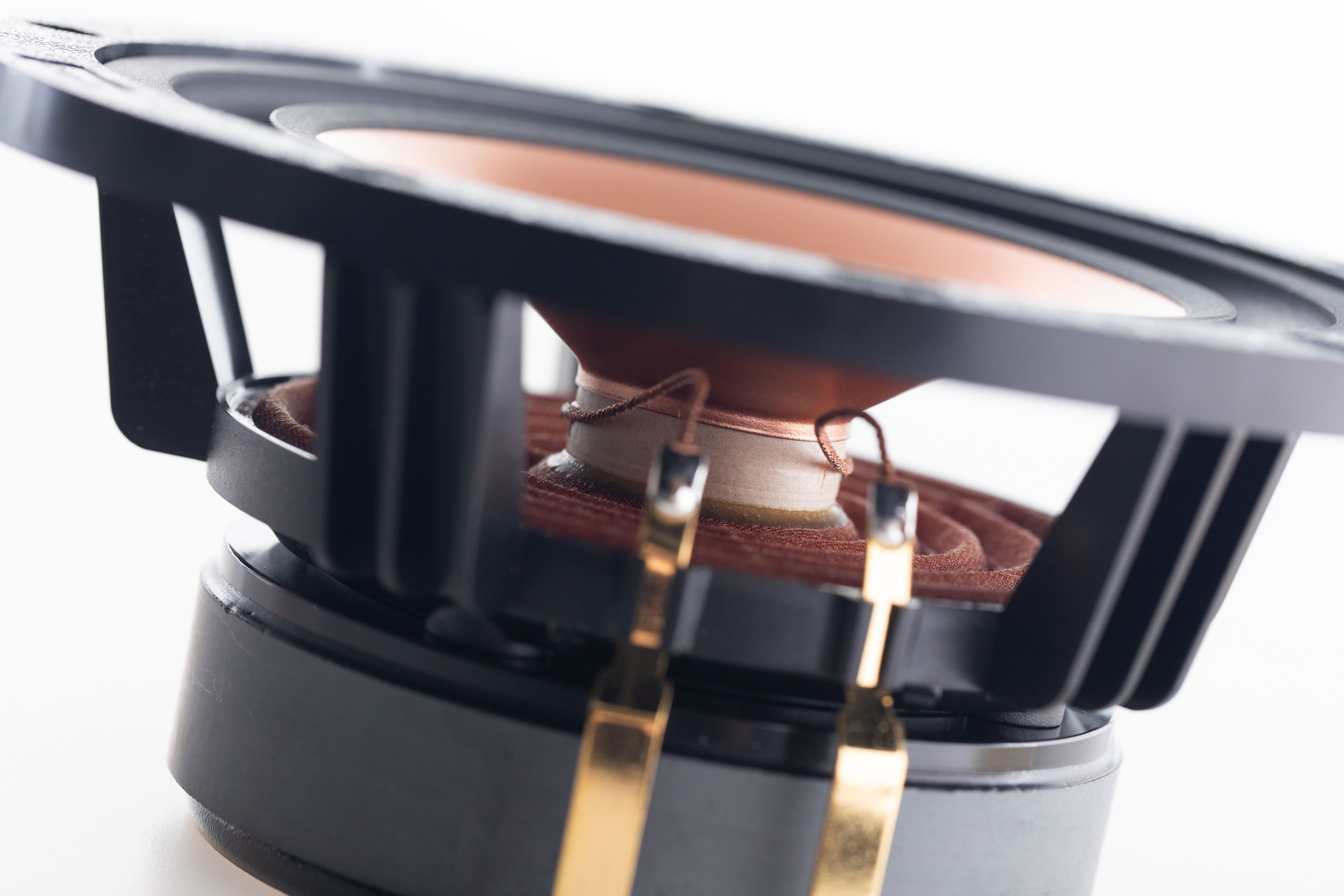

The CHR90 chassis is an all-new design, dedicated to this driver. All moving parts (powertrain) are new and custom made for this driver. Much work has been done to make the CHR90 a versatile driver and extend the well-known performance characteristics of Markaudio’s products.


Revc 7.80 Ohm
F0 44.34 Hz
Sd 0.0085 m²
Vas 26.1403 Ltr
CMS 2.5942 mm/N
MMD 4.5230 g
MMS 4.9661 g
Xmax 7mm one way
QMS 2.4647
QES 0.4212
QTS 0.3598
LeVc 0.0912 mH
No 0.52 %
SPL0 89.3548 dB




Additional information

Weight 2.6 kg
Dimensions 45 × 45 × 25 cm
RE

7 Ohms

FS

42.149

SD

147.410

VAS

43.060 Ltr

CMS

1.396m M/N

MMD

9.188 g

MMS

10.217 g

BL

7.540 T/M

QMS

1.981

QES

0.333

QTS

0.285

LE

53.952 uH

SPL

91.73 dB

POWER (NOMINAL)

30 Watts

X MAX

5.4 mm (one way)

colour

Paper
